• Model NO.：509O
• Output Power：0~30W, Adjustable
• Focus Spot Diameter：0.4mm
• Transport Package：Carton Package,Wooden Package,Aluminum Foil Packag
• Specification：Manufactory,OEM,ISO13485,CE
• Trademark：HUAFEI
• Origin：China
• HS Code：8543709990
• Production Capacity：500,Months

Basic Info.

Model NO. 509O Output Power 0~30W, Adjustable Focus Spot Diameter 0.4mm Transport Package Carton Package/Wooden Package/Aluminum Foil Packag Specification Manufactory/OEM/ISO13485/CE Trademark HUAFEI Origin China HS Code 8543709990 Production Capacity 500/Months

Product Description

HUAFEI  QUALITY
BEAUTY  PROMISE

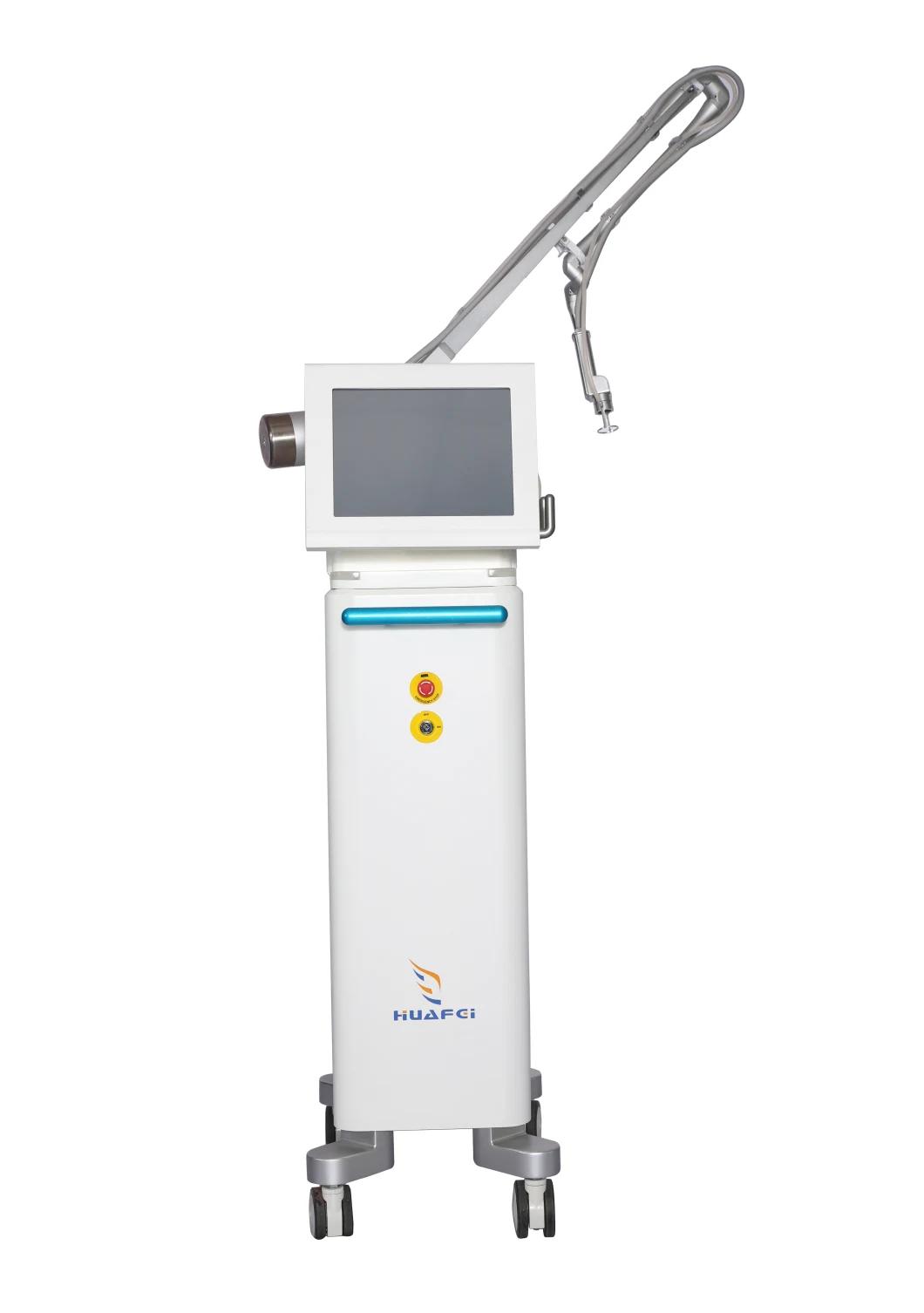

CO2 Laser  Fractional wrinkle Care Approval Vaginal Tighten Beauty Machine










Treatment Theory
 RF CO2 Super pulse fractional laser is newest laser-skin-resurface technology. It adopts RF exciter CO2 laser to change the physical medium and emission mode of laser source. During the treatment, hundreds of evenly and orderly micro-level pulse laser beam acts on the treatment skin area. Photothermal effect and micro invasive effect can accelerate the re-growth of collagen, and starting up the cell's self-regeneration, stimulating the cell's metabolism, which makes the skin resurfaced again.








Treatment Range of CO2 Fractional Laser:
 1. Laser resurfacing
    Start a skin micro exfoliation treatment under fractional mode, and meantime, make
     collagen renewal through heat stimulation of fractional laser, and finally skin gets tender
     and more elasticity.
2. Wrinkle removal
    Our CO2 fractional laser can remove the wrinkles around mouth, eyes, forehead, etc.
3. Freckle removal
    Our CO2 fractional laser can also dilute various freckles like chloasma, freckles, coffee
    spots, age pigment and the actinic keratoses. Remove skin neoplasms, Syringoma,
    sebaceous gland tumor, Becker nevus, and seborrheic keratosis

Clinical Applications:
 1. To improve skin texture, shrink pores; Make the skin smooth and tender
2. To tighten face and neck, with the function of face-lift and enhancement.
3. To remove fine wrinkles around eyes and mouth.
4. To treat surgical and acne scars.
5. To whiten face and remove pigmentation.



Technical Specifications of CO2 Fractional Laser:


Laser Type	RF CO2 laser
Laser Mode	Single mode
Output Power	0~30W, adjustable
Focus Spot Diameter	0.4mm
Lens Focal Distance	F=100mm
Delivery System Spring-balanced	7-joint Articulated arm
Operating mode	single pulse  repeat pulse  continuous pulse  super pulse  ultra pulse
Scanning mode	1-500MS
Control Mode	10 inch Color Touch Screen
Pulse Duration	1-500MS
Cooling System	Air cooled
Laser Wavelength	10.6μ M
Power Supply	AC220V± 10%, 50Hz(AC110V± 10%, 60Hz)
Input Power	500VA
Environment Temperature	5~40C
Relative Humidity	< 80%
Gross Weight (kg)	60KG(wooden packing)
Scan Density	0.5-4 dots / mm
Scan Range	20X20mm

Befoer&After









CERTIFICATION


GLOBAL EXHIBITION


AFTER-SALES-SERVICE:1 free year warranty & lifetime maintenance.
We are specialized in designing, producing and selling IPL, e-light, RF, laser, vacuum, Cavitation and oxygen beauty equipments.
Our company was built in 2001 and we have agent home and abroad now. We are looking forward to your cooperation
Shipment Method : By express such DHL, TNT, UPS ,EMS ect, by air,  by sea transportation;
